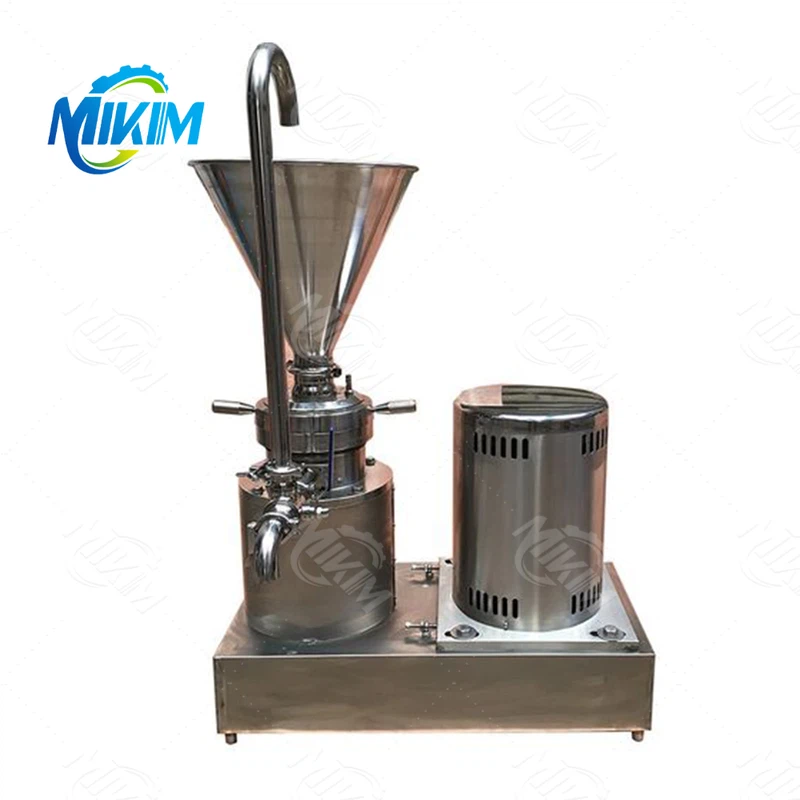

Jam Maker

Model
130 160 180
Capacity（t/h）
0.4-2 0.6-4 0.8-6
Speed
2930
Outer Size
700 975 975
Weight (kg)
280 350 380

Send Inquiry

Product Introduction

Product Introduction

Replace the grinding head and stator.
1. Loosen the handle of the grinding stone, turn it counterclockwise, and then transfer it to the sliding state. Both sides begin to swing slightly left and right and slowly rise.
2. Replace the rotor: After moving the positive plate, after seeing the rotor of the frame, first loosen the blade of the rotor, lift the rotor up with a tool, replace the new rotor, and then screw back the blade.
3. Replace the stator: Tighten the three/four hexagon socket screws on the fixing plate. At this time, pay attention to the small steel ball on the back. Fix the stator after disassembly, tighten the four hexagon socket screws one after another and take them out, then you can replace them with new ones and reinstall them according to the disassembly steps.

Product Parameters

model	capacity	power	No-load speed	size
130	0.2-4t/h	7.5kw	2900r/min	9004001000mm
180	0.8-6.0t/h	15kw	2900r/min	11005001100mm
210	4-15t/h	22kw	2600r/min	12005001400mm

Before starting any repair and disassembly work, safety is always the first consideration. Make sure the equipment is completely powered off to avoid the possibility of electric shock. At the same time, ensure that the working environment is stable and safe.
Use appropriate tools, such as a wrench or screwdriver, to remove the grinding head from the equipment. Be careful during the operation to avoid any damage to the grinding head.
Perform a detailed inspection of the removed grinding head to see if there is any wear, damage or blockage. If the grinding head is worn or damaged, it may need to be replaced with a new one. Then, use an appropriate cleaning agent and tools (such as a soft cloth or brush) to clean the grinding head.

Similarly, remove the grinding teeth from the equipment and inspect and clean them. If the grinding teeth are worn or damaged, they may need to be replaced.
Other parts of the equipment, such as motors, bearings, seals, etc., also need to be inspected. If there is any damage or wear, they may need to be replaced or repaired.
After all parts have been inspected and cleaned, you can start to reassemble the equipment. Make sure all parts are properly installed in their original positions and all screws and fasteners are tightened.
After completing the assembly, reconnect the power supply and perform a simple test to ensure that the equipment is working properly. If any problems are found during the test, it may be necessary to disassemble and inspect again.
