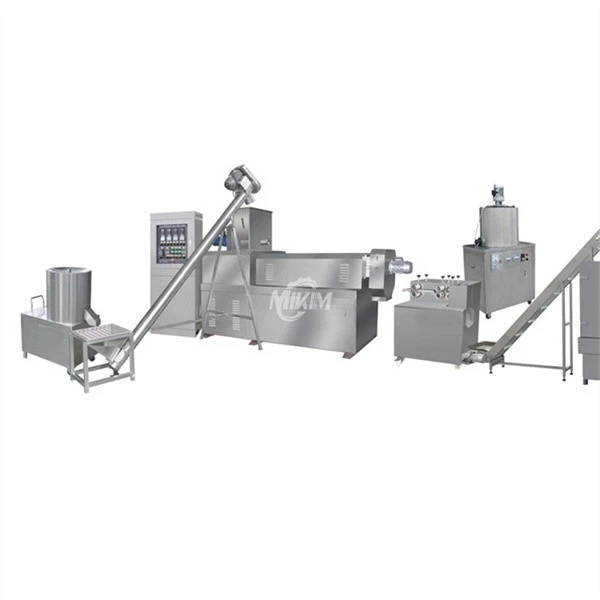

Crispy Snack Puffing Production Line

Model
LYS-65 LYS-70 LYS-85 LYS-95
Power
5.5kw 15kw 18.5kw 22kw
Capacity
50 kg/h 150kg/h 200-300kg/h 400-500kg/h

Send Inquiry

Product Introduction

potato chips production line

The snack production line is a highly automated food processing equipment, mainly used for the production of sandwich rice crackers, biscuits, puffed foods, etc. Its core feature is to achieve full control from raw material processing to finished product packaging through automated processes.

Production Process:

1. Raw Material Mixing: Corn, flour, rice, and other raw materials are mixed uniformly in a powder mixer.

2. Extrusion: A twin-screw extruder is used to perform high-temperature extrusion, expanding the dough and forming it into a specific shape.

3. Filling Injection: A dedicated filling machine is used to inject fillings such as chocolate and syrup into the expanded dough to create a sandwich structure.

4. Forming and Cutting: The product is cut into round and square bars using a forming and cutting machine.

5. Baking and Seasoning: The product is baked in a multi-layer continuous oven and seasoned using an oil/sugar sprayer.

6. Cooling and Packaging: After automatic cooling, the product is sealed and packaged to complete the product.

chips production line

Model	Power	Capacity	Heater	Dimension(mm)	Weight
LXT-65	5.5kw	50 kg/h	1 kw	17208701050	350 kg
LXT-70	15kw	150kg/h	1 kw	17209701250	500 kg
LXT-85	18.5kw	200-300kg/h	2 kw	13601870850	650 kg
LXT-95	22kw	400-500kg/h	2 kw	230011701400	850 kg

Raw material mixer

The mixer is used to mix the powdered raw materials and liquid seasonings evenly. The moisture and starch content of the raw materials will directly affect the degree of puffing. Therefore, when selecting raw materials, it is best to choose raw materials with moderate moisture and starch content.

Snack Puffing Machine

Corn puffing machine is the most important machine in the production of puffed food. In the corn puffing cereal machine, the raw material is steamed and shaped at high temperature. Then it will be extruded through the holes of the die. Therefore, different puffed foods can be made by changing different shapes and molds.

Seasoning Machine

In order to obtain a unique taste, a seasoning machine is required for seasoning. The seasoning machine has the characteristics of continuous operation and will not destroy the structure of the puffed food.

Packaging Machine

For storage and transportation, expanded foods need to be packaged. We offer packaging machines that can produce both bag and box packaging formats.

Equipment configuration and features

Flexible Machine Models: Supports a variety of machine models, allowing production line scale and capacity to be adjusted based on demand.
High Level of Automation: Automates the entire process, from raw material mixing and process control to finished product packaging, reducing manual intervention.
Wide Range of Raw Materials: Processes corn, flour, soy flour, and other raw materials to meet diverse product needs.
Diverse Product Variety: Produces over 20 products, including rice crackers, wheat crackers, rice cakes, and nutritious breakfast products.
Easy Operation: Equipped with a human-machine interface, operators can operate easily without specialized training.

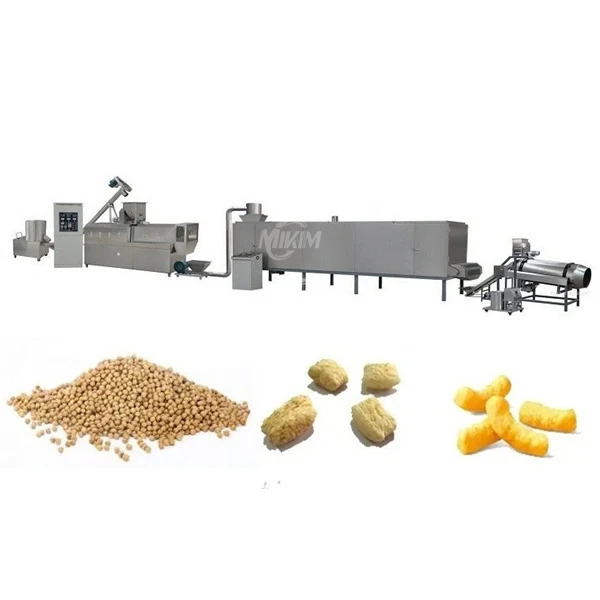

Finished product display

FAQ

What is your company's pre-sales service like?
1. We can provide a factory layout diagram based on the customer's factory size.
2. We can create a general formula based on the customer's material costs.
3. We can provide specialized machines upon request.

What is your company's after-sales service like?
1. We will provide a distribution diagram upon request.
2. We will provide an operating manual after shipment.
3. We offer a one-year warranty and lifetime maintenance at cost.

What if a machine's wearing parts need to be replaced?
We can provide the wearing parts at any time and provide a video.
