Puffed Corn Snack Potato Chips Production Line
Model
LYS-65 LYS-70 LYS-85 LYS-95
Power
5.5kw 15kw 18.5kw 22kw
Capacity
50 kg/h 150kg/h 200-300kg/h 400-500kg/h
- Product Introduction
Introduction of puffed food production line
The puffed snack food production line automatically completes all processes from raw material preparation, extrusion molding, cutting, drying, seasoning to finished product in one go. Puffed snack foods have a crispy texture and unique flavor, making them one of the most popular snack foods.
| Model | Power | Capacity | Heater | Dimension(mm) | Weight |
| LXT-65 | 5.5kw | 50 kg/h | 1 kw | 1720*870*1050 | 350 kg |
| LXT-70 | 15kw | 150kg/h | 1 kw | 1720*970*1250 | 500 kg |
| LXT-85 | 18.5kw | 200-300kg/h | 2 kw | 1360*1870*850 | 650 kg |
| LXT-95 | 22kw | 400-500kg/h | 2 kw | 2300*1170*1400 | 850 kg |
Snack samples for reference
By replacing the die of the twin-screw extruder for puffed food, we can produce puffed food in different shapes. By adding a sandwich machine and a cutting machine, we can produce sandwich foods on the same production line.
Introduction to each part
Raw material mixer
The mixer is used to mix the powdered raw materials and liquid seasonings evenly. The moisture and starch content of the raw materials will directly affect the degree of puffing. Therefore, when selecting raw materials, it is best to choose raw materials with moderate moisture and starch content.
Snack Puffing Machine
Corn puffing machine is the most important machine in the production of puffed food. In the corn puffing cereal machine, the raw material is steamed and shaped at high temperature. Then it will be extruded through the holes of the die. Therefore, different puffed foods can be made by changing different shapes and molds.

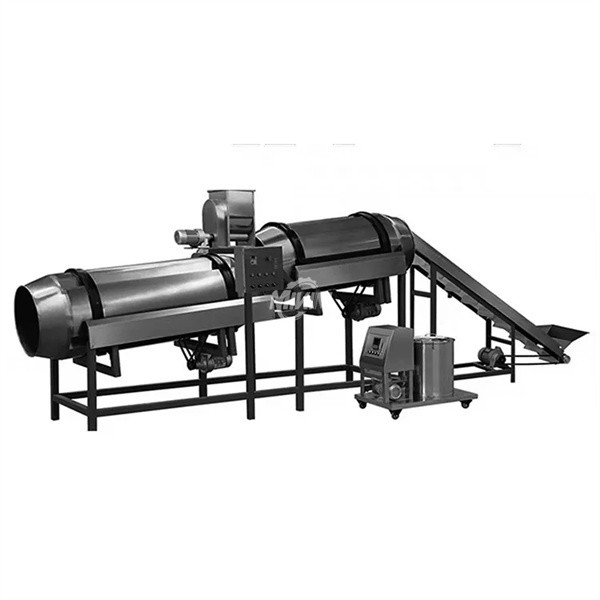

Seasoning Machine
In order to obtain a unique taste, a seasoning machine is required for seasoning. The seasoning machine has the characteristics of continuous operation and will not destroy the structure of the puffed food.
Packaging Machine
For storage and transportation, expanded foods need to be packaged. We offer packaging machines that can produce both bag and box packaging formats.
Characteristics of snack food extrusion production line
1. Centralized touchscreen control for accuracy and convenience.
2. Directly connected motor and distribution box for minimal energy loss.
3. Imported bearings for strong load-bearing capacity.
4. Barrel equipped with a water injection device to better meet raw material and quality requirements.
5. High-speed tool steel lead screw with a hardness of HRC ≥ 62 for a long service life.
6. Modular combination screws allow for flexible assembly to suit different raw materials and products.
7. Linear bearing adjustment for safe, accurate, and fast operation.
Configuration is optional, you can tell us and we can customize the production machine.
Why Choose Us?
1. We provide snack food production formulas, installation, commissioning, and operator training. Our professional engineers provide machine installation, training, employee training, problem solving, and long-term machine maintenance.
2. We offer a comprehensive after-sales product quality tracking system, creating complete product quality tracking reports for each customer, providing professional analysis, and timely feedback.
3. We design and provide custom products based on customer requirements.
4. We are always committed to continuous development and research for the benefit of our customers, and we never stop striving.
Equipment real shot display
