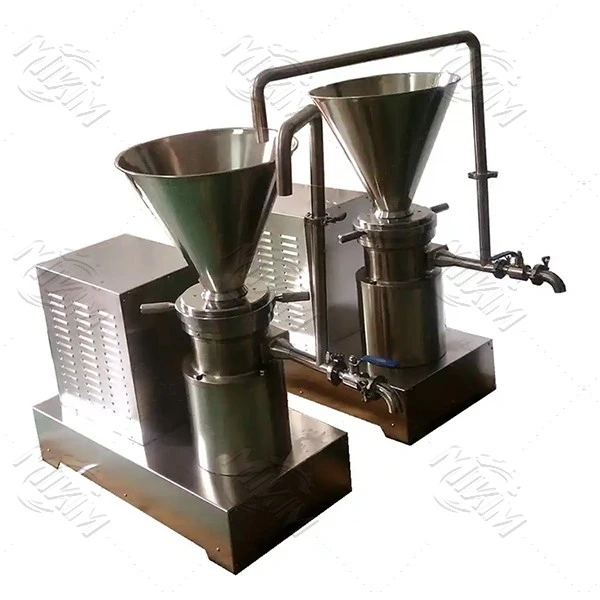

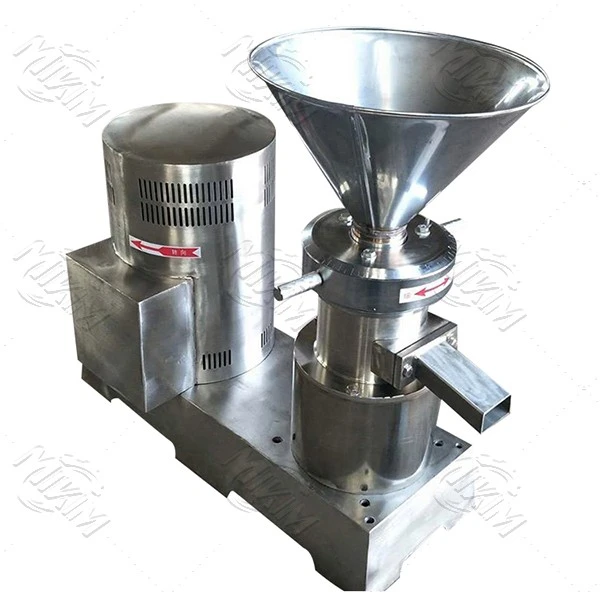

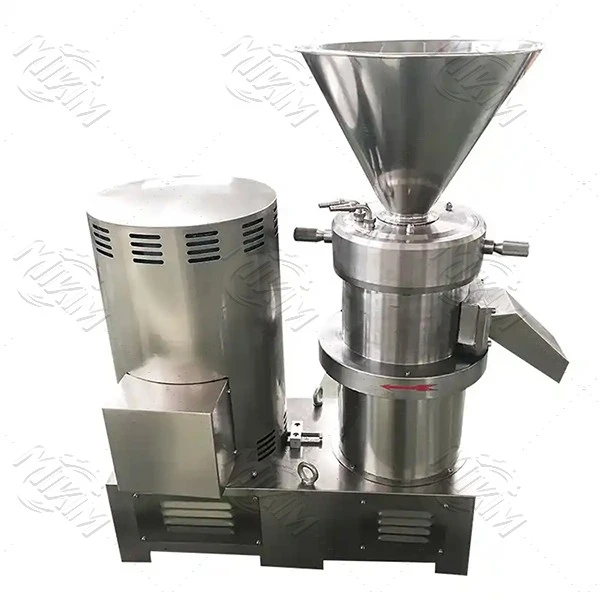

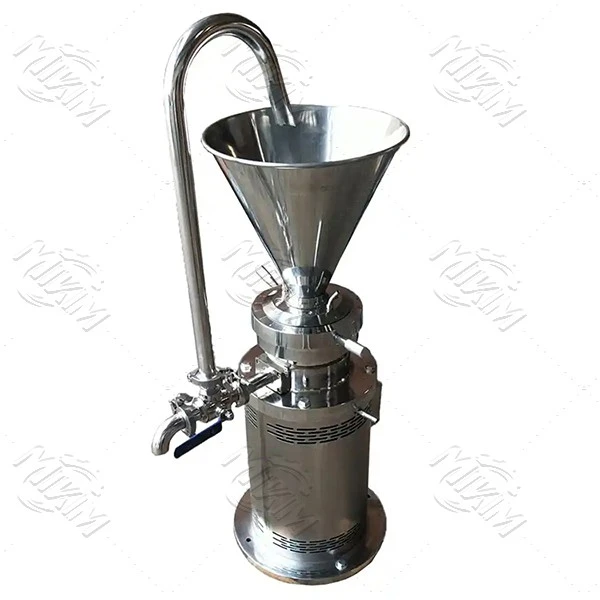

Peanut Grinder
Model
130 160 180
Outer Size
700 975 975
Weight (kg)
280 350 380
- Product Introduction
Product Introduction
The maintenance and care of the colloid mill is the key to ensure its long-term stable operation and extend its service life. The following are some of the main maintenance and care methods:
Check the pipelines and joints: Regularly check whether the pipelines and joints of the colloid mill are loose, and turn the colloid mill by hand to see if it is flexible.
Clean the equipment: Keep the colloid mill clean, and regularly clean the impurities and residues inside and outside the equipment to avoid damage to the equipment.
Product Parameters
| Model | 130 | 160 | 180 |
| Capacity(t/h) | 0.4-2 | 0.6-4 | 0.8-6 |
| Speed | 2930 | 2930 | 2930 |
| (m/min) | |||
| Outer Size | 700 | 975 | 975 |
| Weight (kg) | 280 | 350 | 380 |
Adjust the packing gland: Adjust the packing gland frequently to ensure that the dripping in the packing chamber is normal (it is better to leak in drops).
Check the wear of the sleeve: Check the wear of the sleeve regularly, and replace it in time if it is worn out.
No idling and reversing: The colloid mill is a high-precision machine, and idling and reversing are strictly prohibited to prevent damage to the equipment.
Pay attention to the nature of the material: Quartz sand, broken glass, metal chips and other hard materials must not be mixed in the processing material to avoid damage to the equipment.
Shutdown sequence: When the colloid mill is to be stopped, the gate valve and pressure gauge should be closed first, and then the motor should be stopped.
Draining and antifreezing: When used in the cold winter season, the drain screw at the bottom of the pump body should be unscrewed to drain the medium after stopping to prevent freezing and cracking.
Long-term out-of-service treatment: When the colloid mill is out of service for a long time, the pump needs to be completely disassembled, the water needs to be wiped off, the rotating parts and joints need to be greased and installed, and properly stored.
