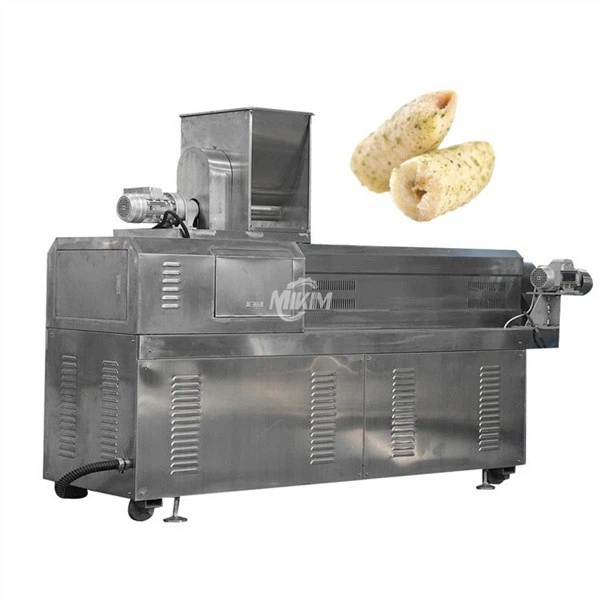

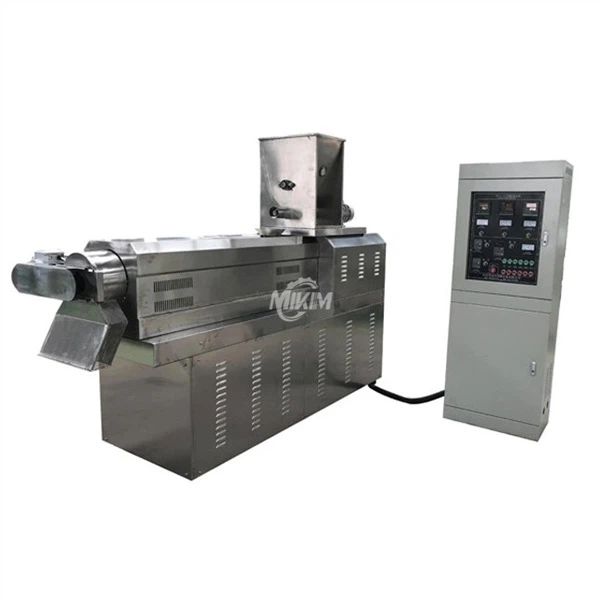

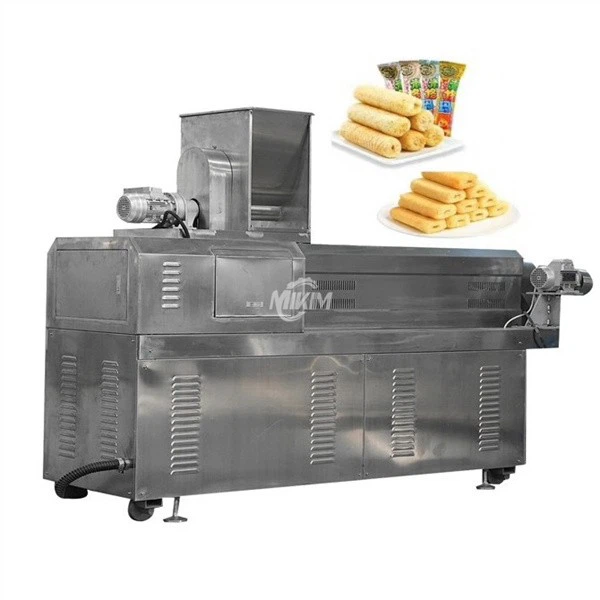

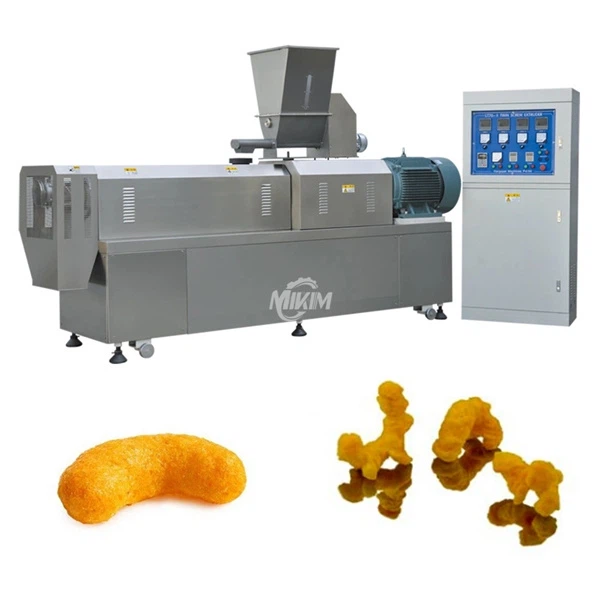

Twin-Screw Extruder For Food
Model
LYS-65 LYS-70 LYS-85 LYS-95
Power
5.5kw 15kw 18.5kw 22kw
Capacity
50 kg/h 150kg/h 200-300kg/h 400-500kg/h
- Product Introduction
Product Introduction
A twin-screw extruder is a food processing machine that uses two rotating screws to force ingredients through a die, creating a variety of shapes and textures. It's particularly favored for its high-shear mixing, efficient heating, and ability to produce diverse products like snacks, cereals, and meat analogs.
Product Parameters
|
Model |
Power |
Capacity |
Dimension(mm) |
Weight |
|
LYS-65 |
5.5kw |
50 kg/h |
1720*870*1050 |
350 kg |
|
LYS-70 |
15kw |
150kg/h |
1720*970*1250 |
500 kg |
|
LYS-85 |
18.5kw |
200-300kg/h |
1360*1870*850 |
650 kg |
|
LYS-95 |
22kw |
400-500kg/h |
2300*1170*1400 |
850 kg |
Twin-Screw food Extruders
Twin screw extruders consist of two parallel screws in a barrel with a figure-eight cross section. The use of twin-screw extruders for food processing started in the 1970s, with an expanding number of applications in the 1980s. Twin-screw extruders are generally one and one-half times or more expensive than single a screw machine of the same capacity . Yet the degree of quality control and processing flexibility they offer can make them attractive to food industries. Twin screws produce a more uniform flow of the product through the barrel due to the positive pumping action of the screw flights. Some other advantages of twin screw are:
Handle viscous, oily, sticky or very wet material and some other products, which will slip in single screw extruder (for example it is possible to add up to 25% fat in a twin-screw extruder)
Less wear in a smaller part of the machine than in single screw extruder
Wide range of particle size (from fine powder to grains) may be used, whereas single screw is limited to a specific range of particle size.
Because of the self-wiping characteristics clean up is very easy.
Four types of twin-screw extruders are possible:
Non-intermeshed, co-rotating
Non-intermeshed, counter rotating
Intermeshed, co-rotating
Intermeshed, counter rotating
From these four types of twin-screw extruders, the co-rotating, intermeshed screw type has found the widest acceptance in the food industry.
FAQ
Q:What is your terms of payment ?
A: 30% T/T in advance , 70% balance before shipment after inspection.
Q: How about the after-service?
A: We will send 1 engineer to the buyer's factory for 7-14 days period installation and training to the operators.
