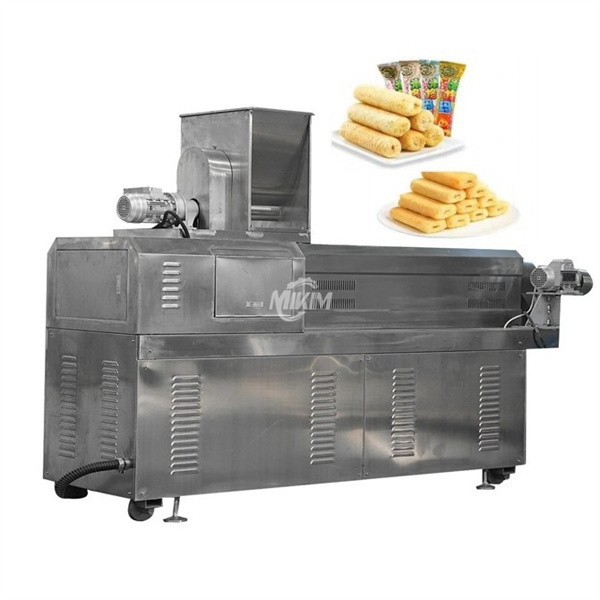

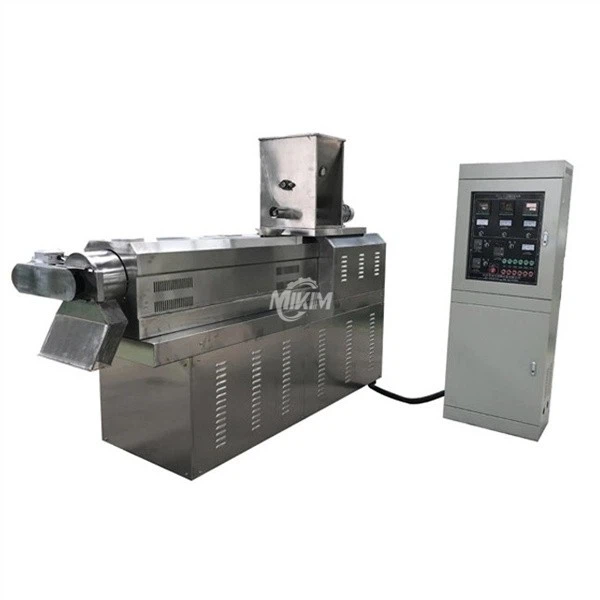

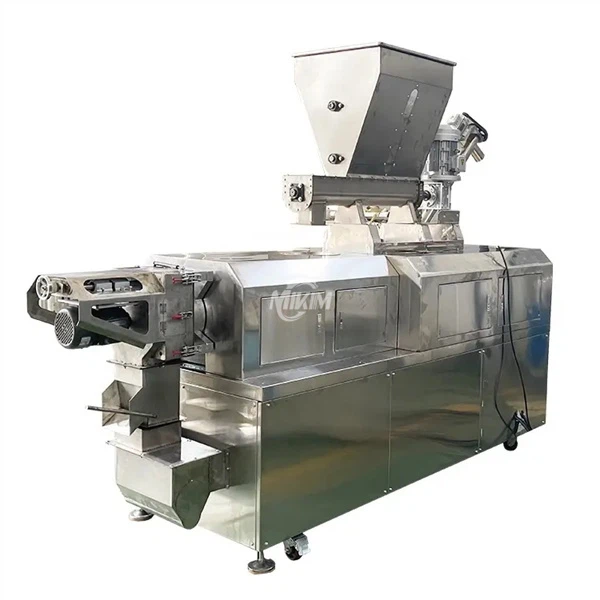

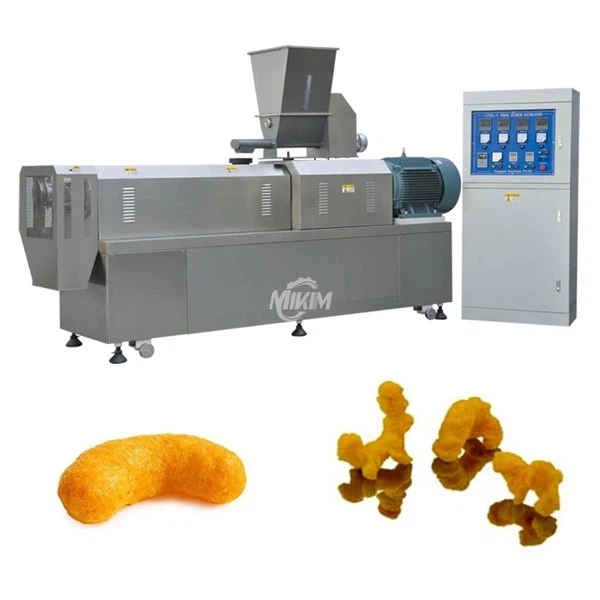

Twin Screw Extruder Machine
Model
LYS-65 LYS-70 LYS-85 LYS-95
Power
5.5kw 15kw 18.5kw 22kw
Capacity
50 kg/h 150kg/h 200-300kg/h 400-500kg/h
- Product Introduction
Product Introduction
A twin screw extruder machine is a specialized equipment designed to process and extrudevarious materials. Unlike its single-screw counterpart, thetwin screw extruder features two parallel screws that rotate in the same direction within aheated barrel.
Product Parameters
|
Model |
Power |
Capacity |
Heater |
Dimension(mm) |
Weight |
|
LYS-65 |
5.5kw |
50 kg/h |
1 kw |
1720*870*1050 |
350 kg |
|
LYS-70 |
15kw |
150kg/h |
1 kw |
1720*970*1250 |
500 kg |
|
LYS-85 |
18.5kw |
200-300kg/h |
2 kw |
1360*1870*850 |
650 kg |
|
LYS-95 |
22kw |
400-500kg/h |
2 kw |
2300*1170*1400 |
850 kg |
A twin screw extruder machine is a specialized equipment designed to process and extrudevarious materials. Unlike its single-screw counterpart, thetwin screw extruder features two parallel screws that rotate in the same direction within aheated barrel. This unique configuration offers several advantages, making it a popularchoice for manufacturing applications.
The twin screw extruder's design allows for efficient mixing, kneading, and homogenizationof the material being processed. As the twin screws rotate, they create a self-wiping actionthat prevents material buildup on the barrel walls, ensurina consistent and uniformextrusion.
FAQ
Q:Could you supply all the parameters about the machines?
A: Yes, we will supply all the parameters, price, layout drawing, factory design etc.
Q: How about the machine warranty?
A: We provide 1 year warranty, Lifetime service.
