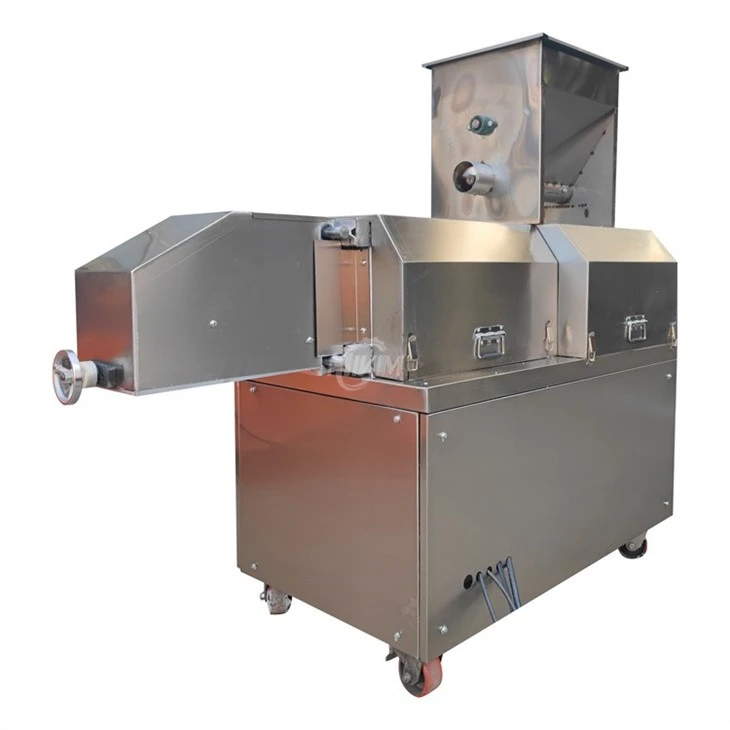

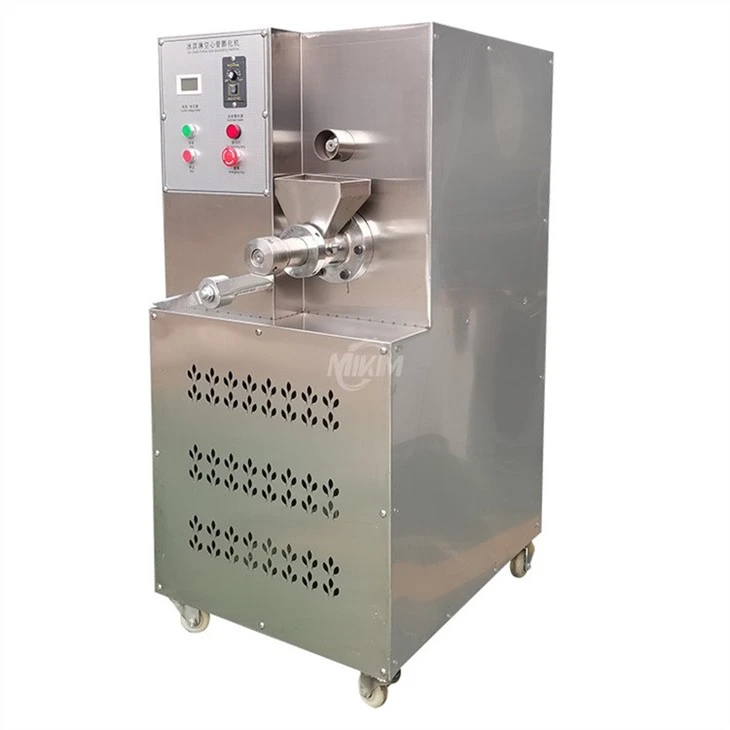

Corn Extruder

Model
80 90 135
production capacities
200-240kg/h 400-500kg/h 500-700kg/h
Power
22kW 30KW 55kW

Send Inquiry

Product Introduction

Product Introduction

Food extruders can use grains as raw materials and have been widely used in industry. Only correct and reasonable operation can increase its performance and reduce the occurrence of failures when working, so as to maximize the role of extruders. Therefore, when using it, you should also pay attention and not use it blindly. Only by using the equipment correctly can the service life of the equipment be guaranteed and the normal operation of the equipment be ensured.

Product Parameters

Model	production capacities	Power	weights	sizes
80	200-240kg/h	22kW	460KG	150014501250
90	400-500kg/h	30KW	800KG	165014501300
135	500-700kg/h	55kW	1200KG	180015501500

When the equipment is in operation, in order to avoid the spiral groove from being blocked, the feeding should be continuous and uniform, and the material should be dry. When the spiral groove of the extruder is found to be blocked, do not stop the machine immediately. It should be operated for a while after stopping the feeding until there is a burning smell. This can avoid the nozzle and spiral sleeve from being stuck. In case the nozzle and spiral sleeve are stuck and cannot be removed, do not knock them hard. You can remove them from the machine body and burn them in the fire for a while, and then they can be removed.

When the nozzle fails to produce formed products at the beginning of operation, it is often due to the nozzle temperature being too high. The reason is that the raw material is too dry, there are foreign objects in the spiral groove, or the feeding is interrupted. The reasons should be found and the faults should be eliminated according to different situations. After stopping feeding, let the machine idle for 1 minute, and stop the machine after draining all the materials in the machine. Then remove the nozzle and spiral sleeve while it is hot, flush out the spiral shaft, clean the residue in the extruder, and dredge the nozzle for reuse.
