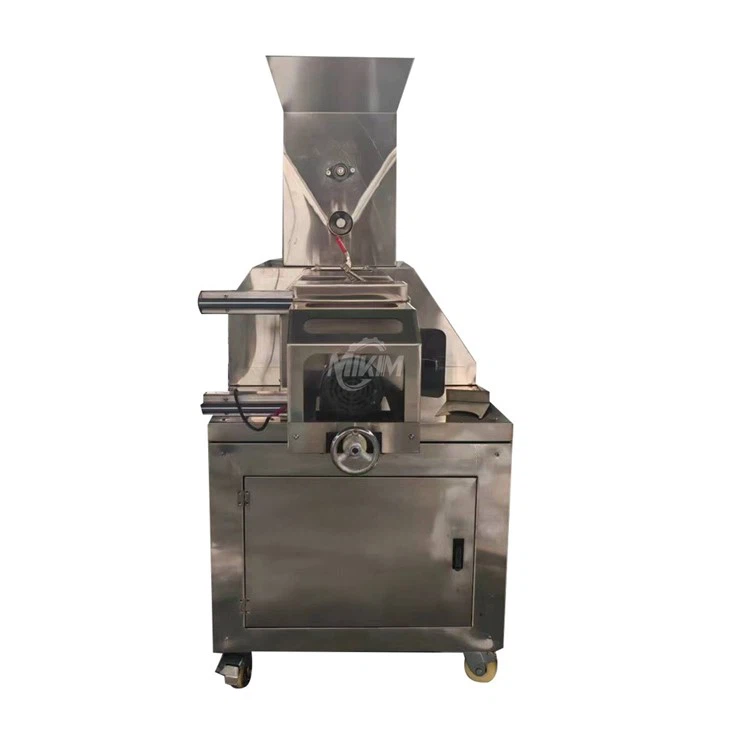

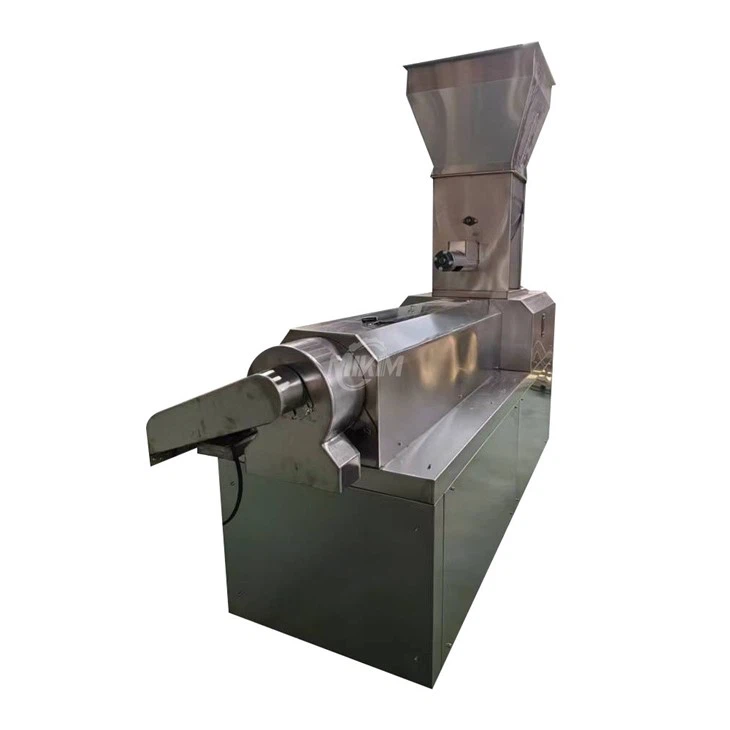

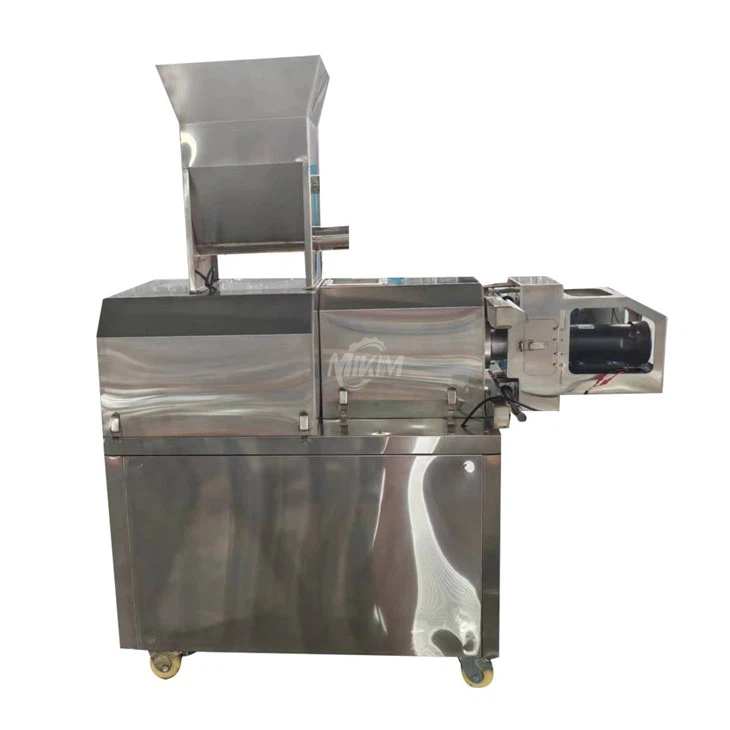

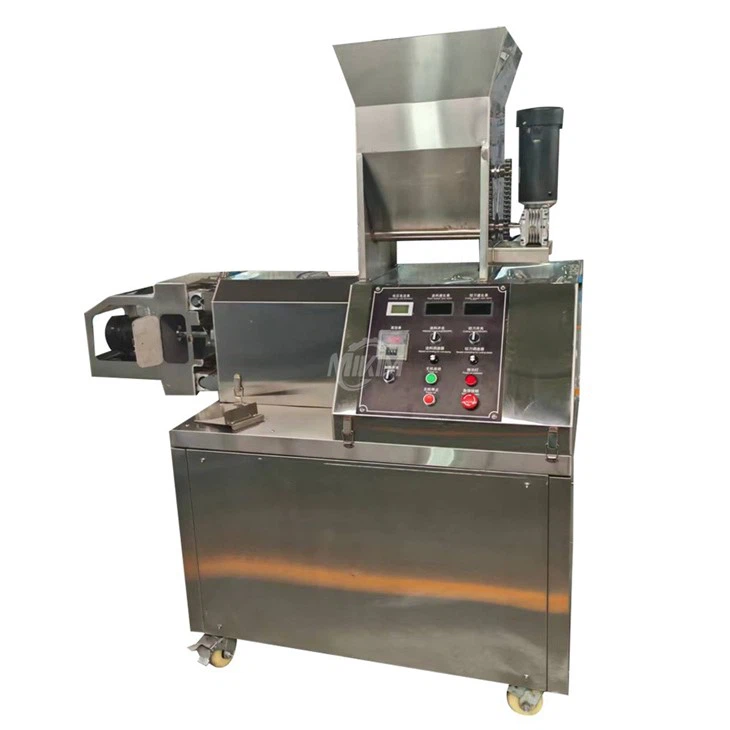

Small Food Extruder Machine

Model
40 50 60
Power
5.5KW 7.5KW 15KW
weights
310KG 330KG 360KG

Send Inquiry

Product Introduction

Product Introduction

Before operating the puffed food machine, you need to remove the machine head, machine core, lead screw and other components, carefully clean the rice dirt and oil stains on the machine core and lead screw, and then dry and reassemble. Start the machine and run it for 1-2 minutes, slowly add the raw materials to the feed port, and stop feeding when about a handful of raw materials can fill the ring groove of the spiral shaft head, and perform friction preheating. Wait until the temperature of the machine head rises, the pressure in the machine cavity increases, and the nozzle starts to spit, then feed. Since the machine cavity has not reached the normal temperature and pressure at this time, the feeding amount should be gradually and slowly increased.

Product Parameters

Model	production capacities	Power	weights	sizes
40	40-50kg/h	5.5KW	310KG	130012001100
50	80-100kg/h	7,5 kW	330KG	135011001200
60	120-150kg/h	15kW	360KG	13501101200
70	180-200kg/h	18,5 kW	410KG	150013601250
80	200-240kg/h	22kW	460KG	150014501250

The box bearings should be filled with lubricating grease in time, and all lubricating grease should be replaced after 500 hours of operation. (A proper amount of lubricating grease should be added before the new machine is operated, and the oil should be changed after 200 hours of operation.)
Other bearing parts should be filled with lubricating grease regularly.
During the disassembly and assembly of the screw, screw sleeve and other wearing parts, it is strictly forbidden to use hard objects and heavy hammers, and it is strictly forbidden to place heavy objects or stand on the puffing chamber.
The puffing raw materials should be cleaned to prevent foreign objects such as metal from entering the machine and damaging the parts.

Food puffing machinery Check the quality of the puffing machine at any time and pay attention to replacing wearing parts.
Keep the area around the equipment clean.
When the machine is shut down for a long time or the puffing material is replaced, the material in the puffing chamber should be cleaned to avoid agglomeration, mildew or cross contamination between materials.
Since the wearing parts near the discharge port wear relatively quickly, the wearing parts near the feed port wear less, so when replacing wearing parts, they should be replaced in sequence starting from the discharge end, and it is not advisable to replace multiple parts at one time.
