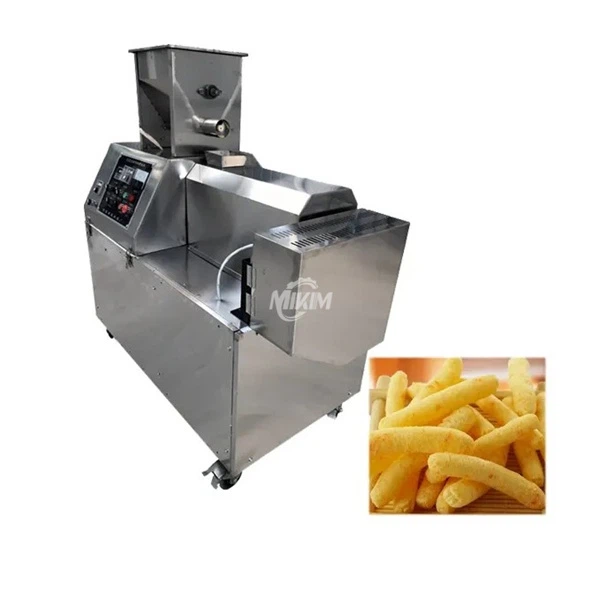

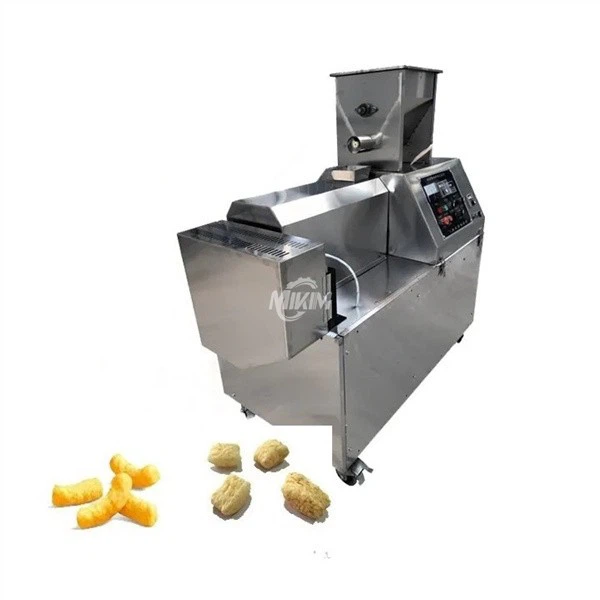

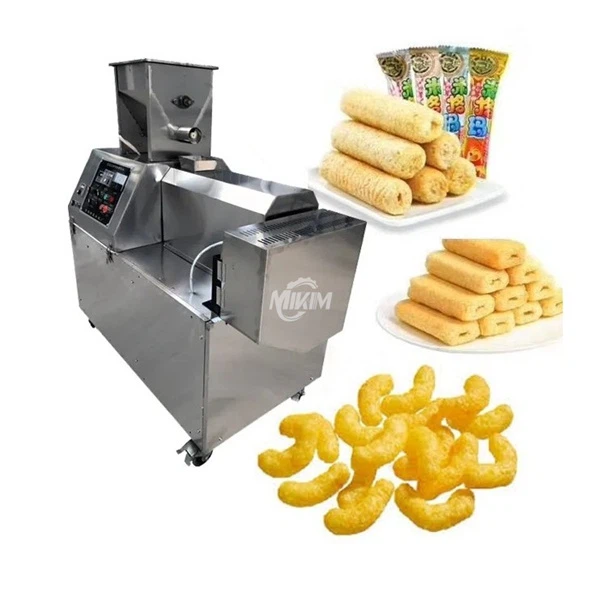

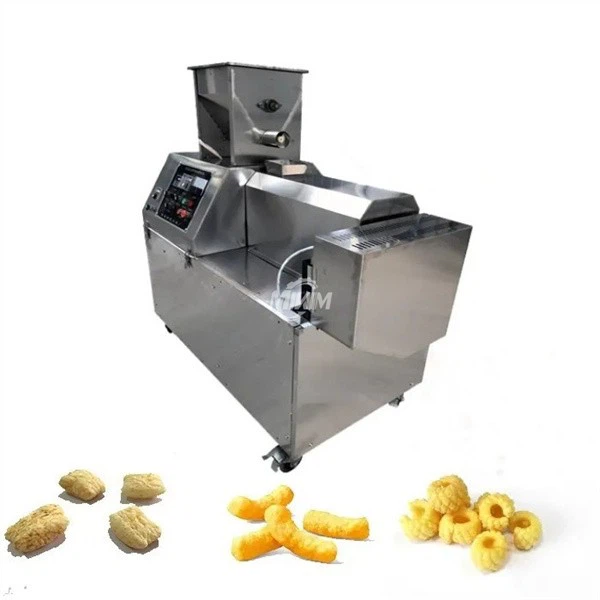

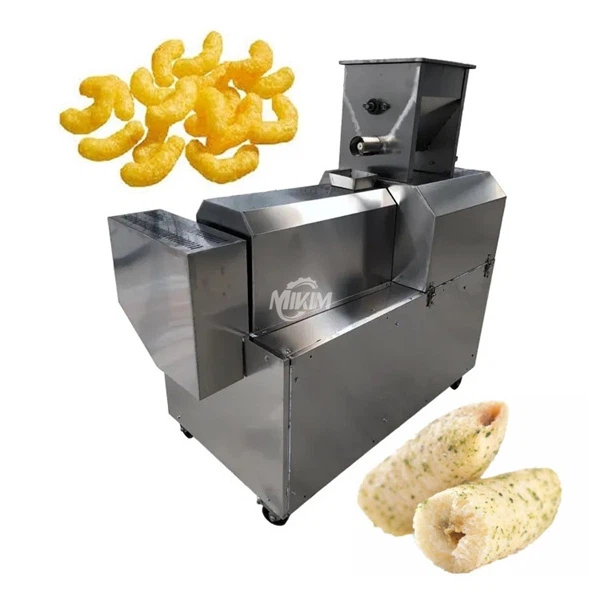

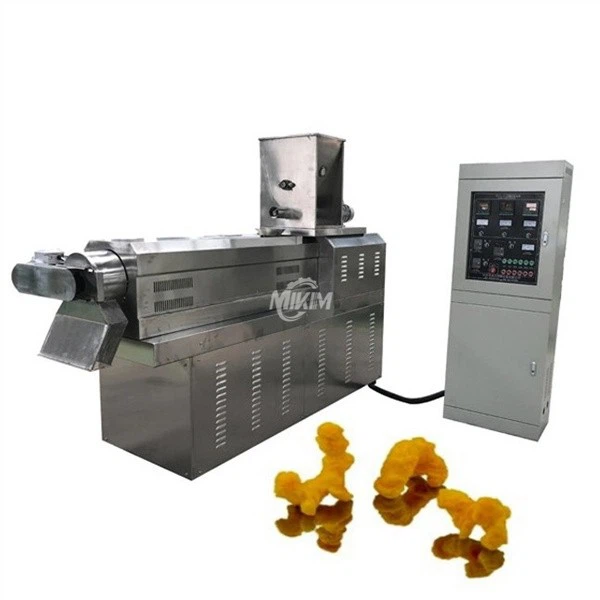

A Corn Puff Extruder
Model
LYS-65 LYS-70 LYS-85 LYS-95
Power
5.5kw 15kw 18.5kw 22kw
Capacity
50 kg/h 150kg/h 200-300kg/h 400-500kg/h
- Product Introduction
Product Introduction
A corn puff extruder is a specialized machine used to create the popular snack, corn puffs. It utilizes a high-temperature, high-pressure extrusion process to produce the light, airy texture and distinctive shape of these snacks.
Product Parameters
|
Model |
Power |
Capacity |
Heater |
Dimension(mm) |
Weight |
|
LYS-65 |
5.5kw |
50 kg/h |
1 kw |
1720*870*1050 |
350 kg |
|
LYS-70 |
15kw |
150kg/h |
1 kw |
1720*970*1250 |
500 kg |
|
LYS-85 |
18.5kw |
200-300kg/h |
2 kw |
1360*1870*850 |
650 kg |
|
LYS-95 |
22kw |
400-500kg/h |
2 kw |
2300*1170*1400 |
850 kg |
How a Corn Puff Extruder Works:
Dough Preparation: Cornmeal or a similar grain is mixed with water and other ingredients (like oil, flavorings, or preservatives) to form a dough.
Extrusion: The dough is forced through a die with a specific shape, typically a star or ring, under high pressure and temperature.
Expansion: As the dough exits the die, it expands rapidly due to the sudden drop in pressure, forming the puffed shape.
Cooking: The puffed snacks are then cooked in a hot air oven to further dry and crisp them.
Key Components of a Corn Puff Extruder:
Extrusion Screw: A powerful screw that pushes the dough through the die.
Heating Zone: A zone where the dough is heated to the required temperature for extrusion.
Die: The die determines the shape of the extruded snacks.
Expansion Chamber: A chamber where the dough expands rapidly.
Cooking Chamber: A separate chamber for drying and crisping the puffs.
Benefits of Using a Corn Puff Extruder:
Efficiency: The extrusion process is highly efficient, producing large quantities of snacks quickly.
Versatility: The machine can be used to produce a variety of extruded snacks, not just corn puffs.
Customization: Different dies and ingredients can be used to create various shapes and flavors.
Control: The extrusion process can be precisely controlled to achieve the desired texture and quality.
FAQ
Q:What is your terms of payment ?
A: 30% T/T in advance , 70% balance before shipment after inspection.
Q: How about the after-service?
A: We will send 1 engineer to the buyer's factory for 7-14 days period installation and training to the operators.
