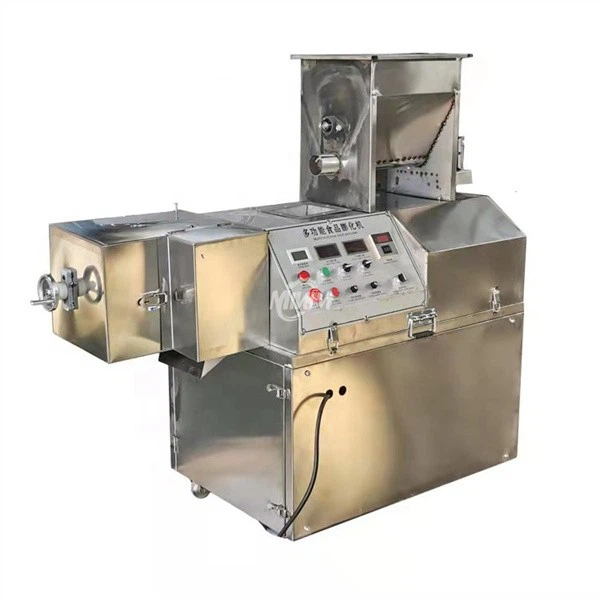

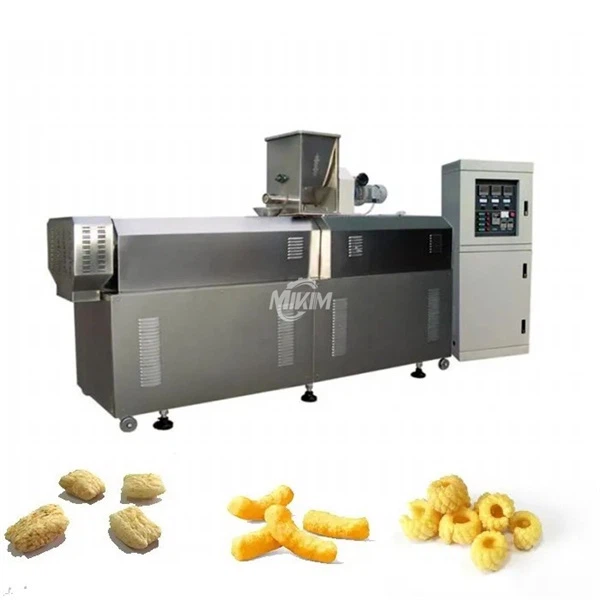

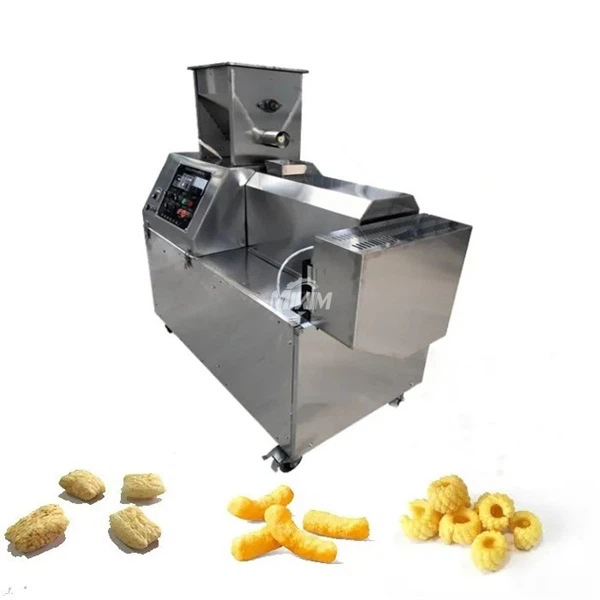

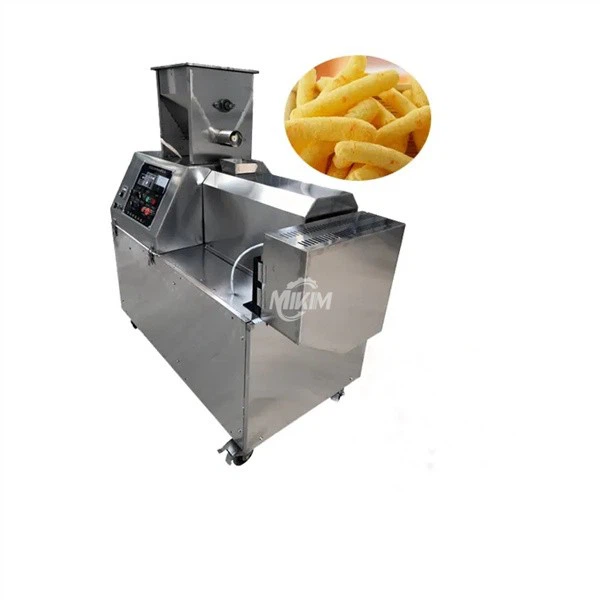

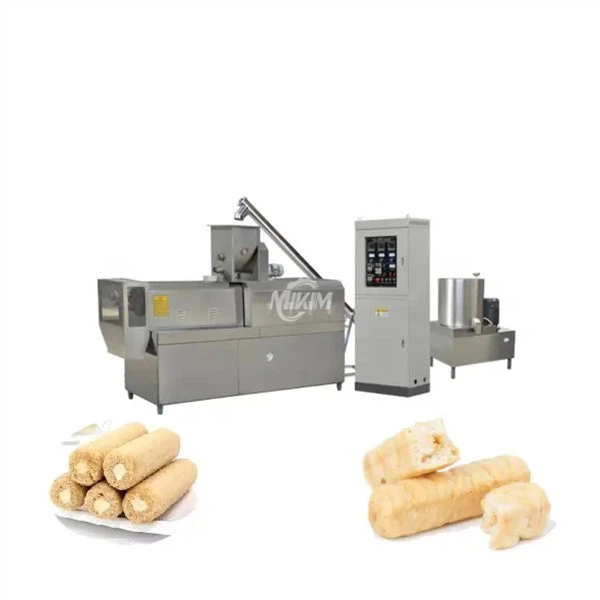

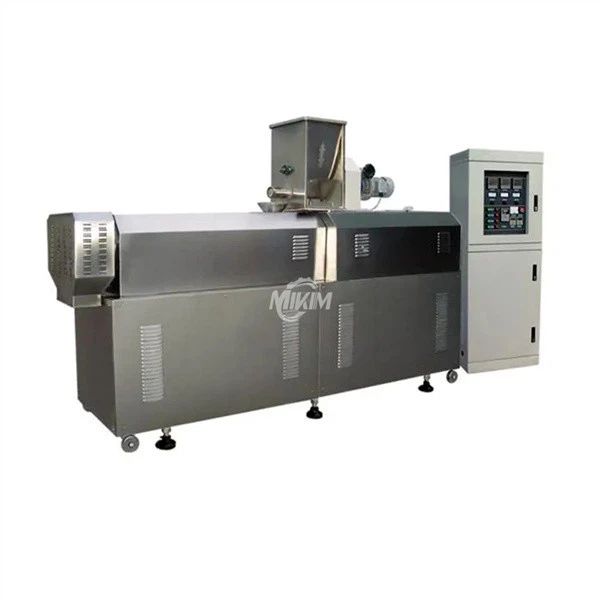

A Twin-screw Food Extruder

Model
LYS-65 LYS-70 LYS-85 LYS-95
Power
5.5kw 15kw 18.5kw 22kw
Capacity
50 kg/h 150kg/h 200-300kg/h 400-500kg/h

Send Inquiry

Product Introduction

Product Introduction

A twin-screw food extruder is a versatile device that uses two rotating screws within a barrel to cook, mix, shape, and texturize food ingredients, offering advantages over single-screw extruders in terms of mixing efficiency, throughput, and flexibility.

Product Parameters

Model	Power	Capacity	Heater	Dimension(mm)	Weight
LYS-65	5.5kw	50 kg/h	1 kw	17208701050	350 kg
LYS-70	15kw	150kg/h	1 kw	17209701250	500 kg
LYS-85	18.5kw	200-300kg/h	2 kw	13601870850	650 kg
LYS-95	22kw	400-500kg/h	2 kw	230011701400	850 kg

How does a twin screw extruder work?
The twin-screw extruder is developed on the basis of the single-screw extruder. Due to its good feeding performance, mixing and plasticizing performance, exhaust performance, extrusion stability, etc., it has been widely used in extruded products.

The twin-screw extruder is composed of two co-rotating screws that mesh with each other and are installed on the spline shaft of the barrel. Due to the wide range of screw and barrel design, various screw profiles and process functions can be set according to process requirements. Therefore, the twin-screw extruder technology can ensure highly flexible transportation, compression, mixing, cooking, shearing, heating, cooling, pumping, molding, etc. The main advantage of the intermeshing co-rotating twin-screw extruder is its excellent mixing ability, which gives the extruded product excellent characteristics.

FAQ

Q:What is your terms of payment ?
A: 30% T/T in advance , 70% balance before shipment after inspection.
Q: How about the after-service?
A: We will send 1 engineer to the buyer's factory for 7-14 days period installation and training to the operators.
