Portable Snack Puffing Machine

Model
LYS-65 LYS-70 LYS-85 LYS-95
Power
5.5kw 15kw 18.5kw 22kw
Capacity
50 kg/h 150kg/h 200-300kg/h 400-500kg/h

  • Product Introduction
Product Introduction

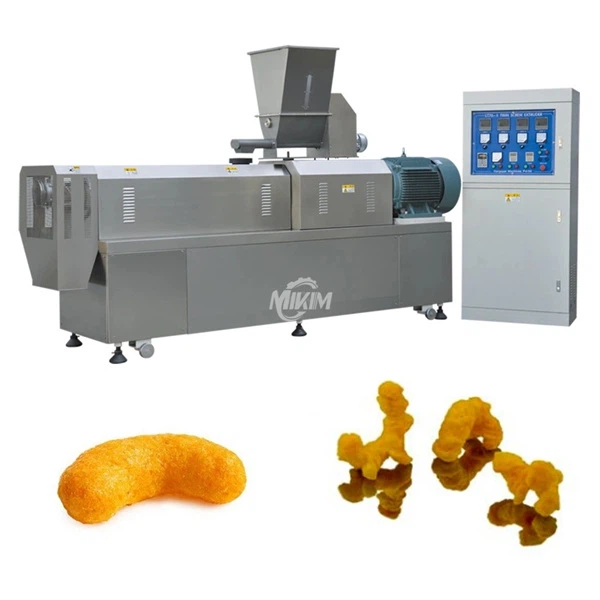

Puffed Snack Food Machine is a machine used to produce various shapes of crispy puffed snacks. It takes corn flour, rice powder etc. as raw materials, under high temperature and high pressure, to puff them into tasty leisure snacks.

Product Parameters



Model

Power

Capacity

Heater

Weight

LYS-65

5.5kw

50 kg/h

1 kw

350 kg

LYS-70

15kw

150kg/h

1 kw

500 kg

LYS-85

18.5kw

200-300kg/h

2 kw

650 kg

LYS-95

22kw

400-500kg/h

2 kw

850 kg





product-600-600



What is the correct way to use food puffing machines?
1. The automatic puffing snack machine head, movement, lead screw and other components should be removed before the machine is operated. It is extremely important to carefully clean up the scale and oil on the movement and lead screw, and dry and reinstall after cleaning.
2. When puffing snacks manufacturing machine in use, start and run for 1 minute-2 minutes, and then slowly add the raw materials to the feed port. When about a handful of raw materials can fill the ring groove of the screw shaft head, stop feeding and perform friction preheating. When the temperature of the standby head rises, the pressure in the machine cavity increases, and the nozzles start to spit, feed the material again.
3. The feeding should be continuous and even, and the material should be dry, otherwise the spiral groove will be easily blocked.







4. When the spiral groove is found to be clogged of the puff making machine, do not stop it immediately. You should run it for a while after stopping the feed, and then stop the machine until there is a burnt smell. This can avoid the sprinkler head and the spiral sleeve from being seized. In case the nozzle and the spiral sleeve cannot be removed due to seizure, don't knock them hard. You can remove them from the body and put them in the fire for a while.
5. At the beginning of the puff maker machine, when the nozzle cannot eject the formed product, it is often caused by the high temperature of the nozzle. The reason is that the raw material is too dry, or there is foreign matter in the spiral groove, or the feed is interrupted. The reason should be found according to different situations. Troubleshoot.


product-600-600



FAQ



Q:Could you supply all the parameters about the machines?
A: Yes, we will supply all the parameters, price, layout drawing, factory design etc.
Q: What is your terms of payment ?
A: 30% T/T in advance , 70% balance before shipment after inspection.



Our Advantages



150

+

Number Of Employees

3000㎡+

Factory Area

10

+

Years Of Experience

800㎡+

Company Area
